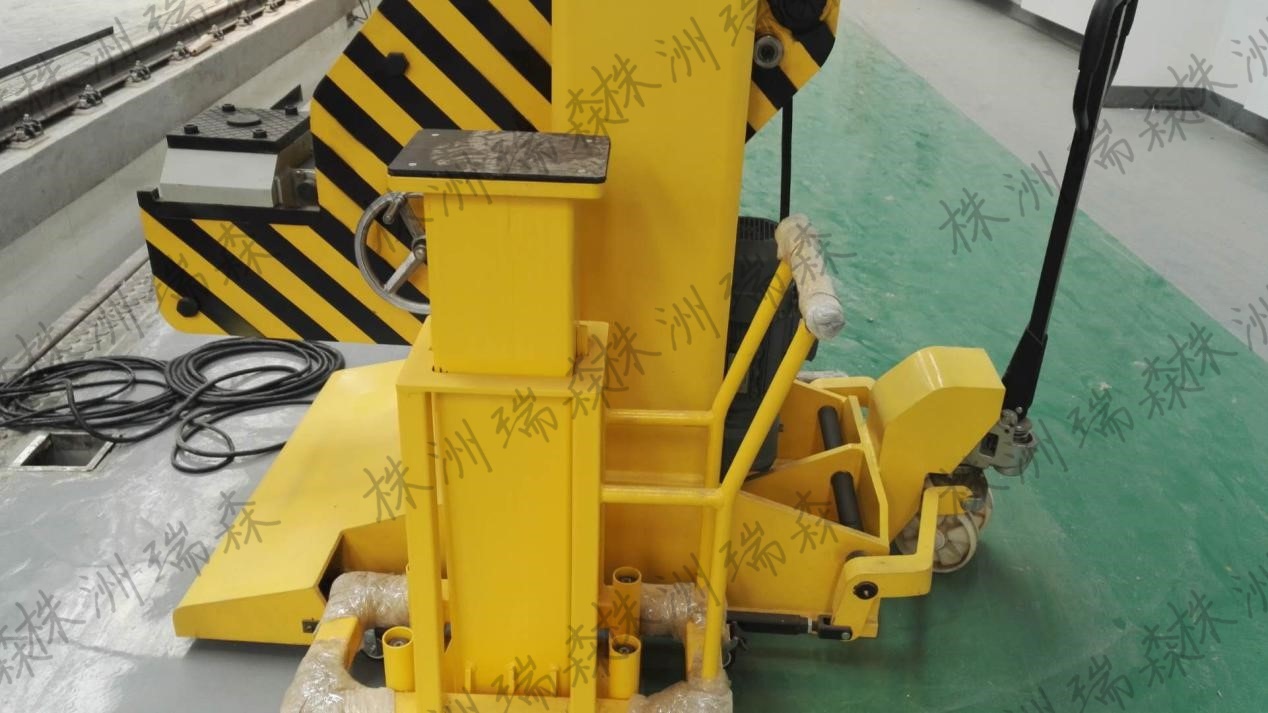

Mobile vehicle body support device, mobile support pier

one Equipment Usage:

It is suitable for supporting the vehicle frames of trams, buses, locomotives, etc. after the lifting operation. It supports the vehicle body and facilitates the maintenance work of the lower part of the vehicle. Four units make up one set. It has the characteristics of convenient placement, simple operation and high safety and reliability.

II. Technical Specifications

Operating temperature: -40℃ to 50℃

Relative humidity: ≤ 95%

Single carrying capacity specification: ≥ 40 tons;

Dimensions: 800*400*1100 (1600) (length × width × height)

Adjustment method and movement method: manual

The minimum height from the ground to the support point of the carriage base after it is placed is; 1100mm

Up and down adjustment range; (Adjustment range: 1100mm to 1500mm)

The fulcrum has high strength and good wear resistance, and it matches the support points of the locomotive.

The steel structure warranty period is no less than 5 years.
