Shunting frame lifting machine, shunting frame lifting platform

Equipment Usage

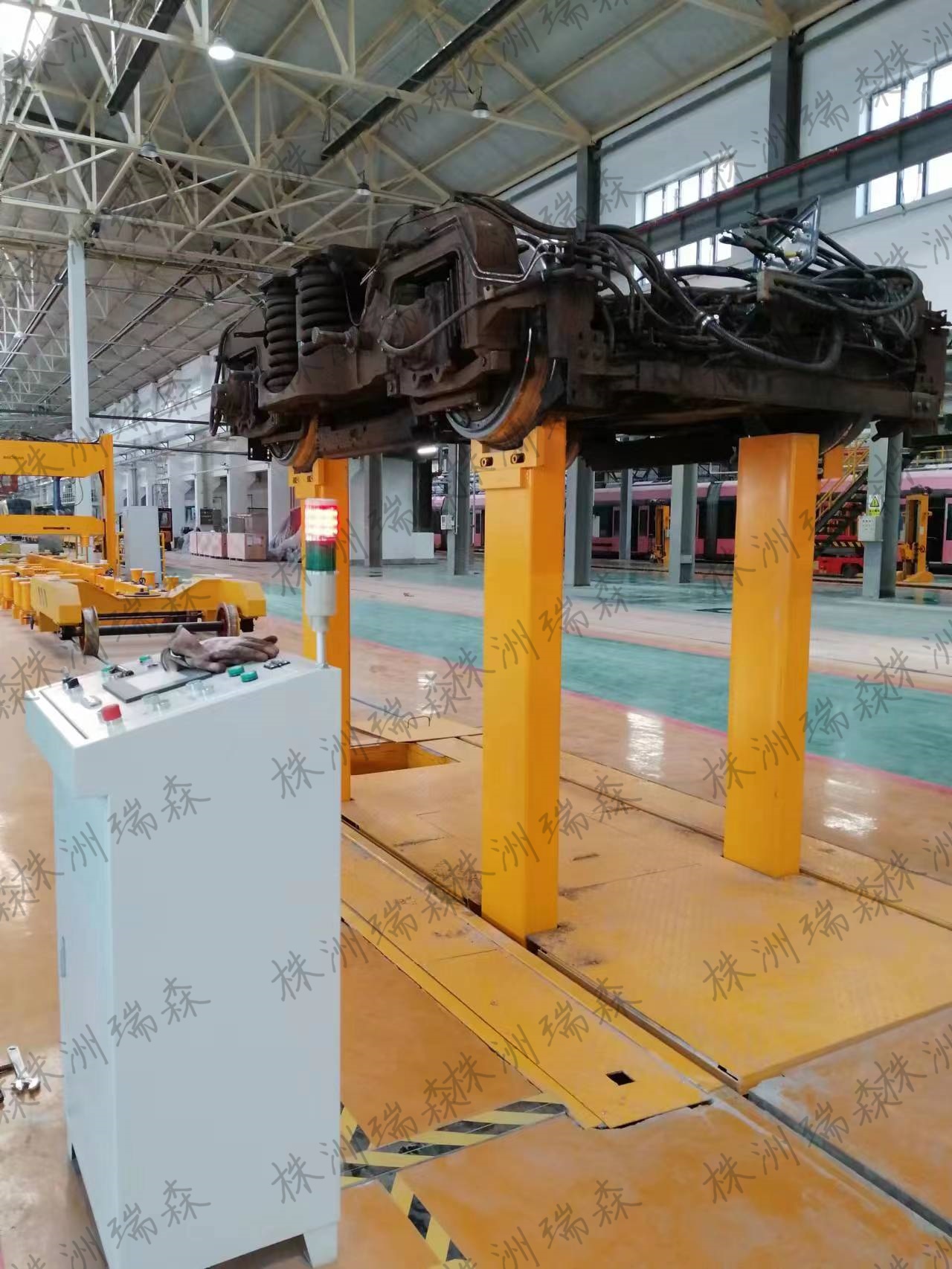

The bogie lifting platform is installed in the bogie maintenance room. This equipment is mainly used to raise the bogie to the appropriate height during the disassembly and assembly of the rail transit vehicle bogie, making it easier to carry out the operations.

Main technical parameters

Overall lifting capacity of the equipment: 15 tons

Maximum lifting height (from the track surface)  0 - 1800mm

The speed of ascent and descent ≤ 300mm/min

The synchronization error of the four lifting units ≤ ±4mm

The coordination accuracy between the equipment rails and the workshop rails is as follows:

Vertical rail gap: 5 to 8 mm

Joint height difference  ≤ ±2mm

Lateral misalignment of the joint         ≤ ±2mm

Equipment power                       No more than 8KW

Equipment weight                    ≤ 3 tons

The protection level of the electrical system is not lower than IP54.

The insulation class of the motor is not lower than F class.
