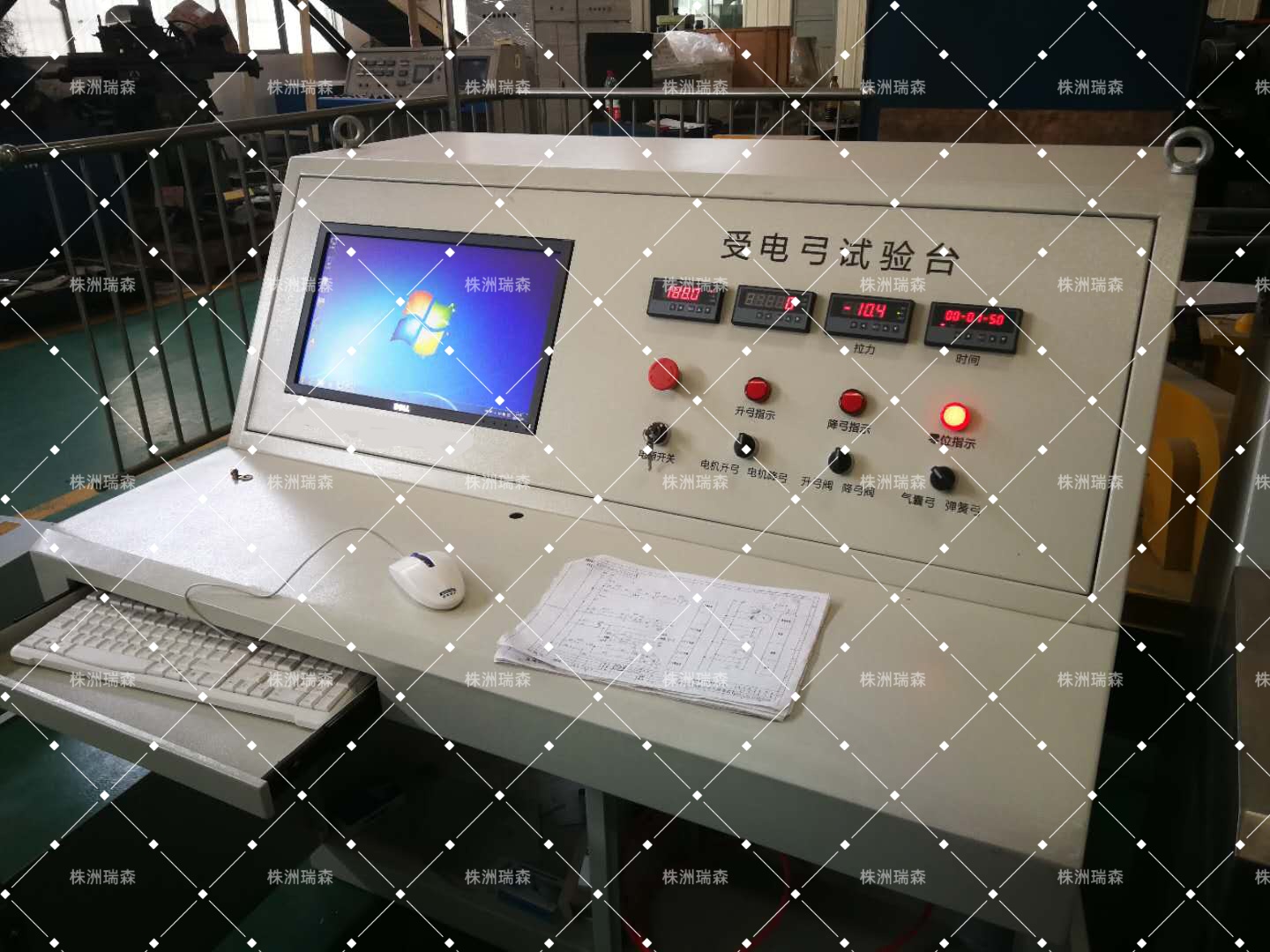

Power Collection Pantograph Performance Testing Platform

Equipment Usage

This equipment is used for the maintenance and performance testing of pantographs on subway vehicles or locomotive vehicles. It can conduct comprehensive tests on the operational characteristics of the pantograph, including detection of parameters such as running speed, static contact pressure, maximum raising height, raising and lowering time, and raising and lowering air pressure.

Technical Specifications

Power Supply: AC220, 50Hz

(2)  Pulling force range: 0 - 200N

(3)  Force measurement accuracy: ±1.0N

(4)  Comprehensive error: ±1.0N

(5) Height: 60 - 3200 mm

(6) Position accuracy: ±2mm

(7) Position error: ±5mm

(Sample interval: 25mm)

(9) Time range: 0 - 20 seconds

(10)  Timing accuracy: 0.1 seconds

(11)  Raising and lowering pantograph time: 0 - 99 seconds

(12)  Wind pressure range: 0 - 1 MPa

(13) Holding pressure time: 0 - 20 minutes

(14)  Input compressed air source pressure: ≤ 0.6 MPa
