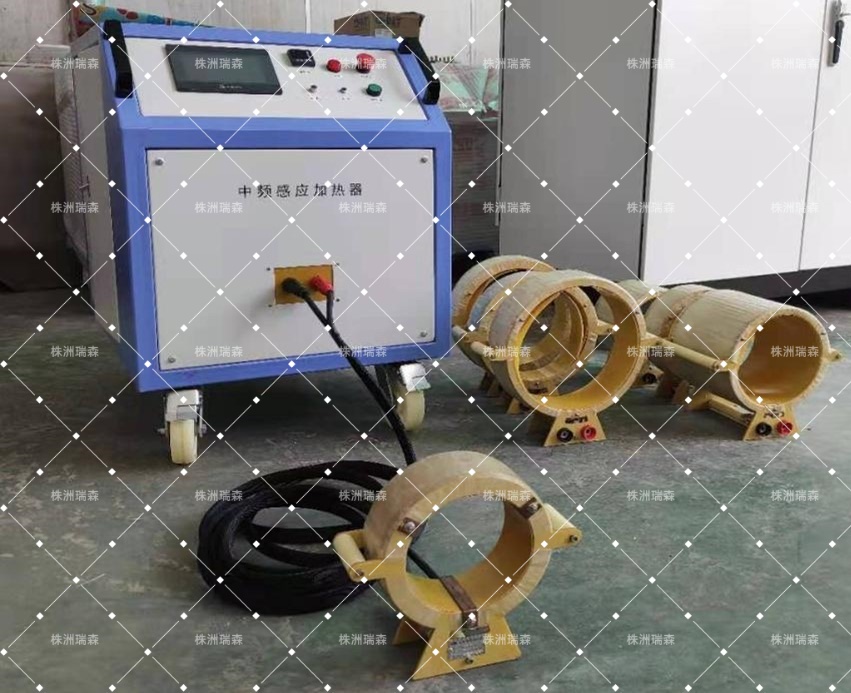

Inner ring induction heating removal device for bearings, medium-frequency induction heater

I. Purpose

This project is applicable to the heating and disassembly process of gears and bearing inner rings in the major repair production环节 of subway traction motors/bearings， etc. It is used to quickly heat the workpieces， facilitating the disassembly of components such as bearings and retaining rings that have interference fits.

II. Technical Specifications

Capacity: 35KVA

Input voltage: AC 380V ± 10%

Output current: 0 - 150A

Control mode: Touch screen click operation for intelligent and manual control modes. It can be controlled using PLC programmable controller + touch screen, or by using industrial computer. It also has Ethernet interface and RS485 interface, and supports TCP/IP protocol for data transmission.

Workpiece temperature setting range: adjustable from 0 to 300℃

Temperature sensor type: K-type thermocouple

Inverter frequency: 1400Hz

Control mode: Time control 0 - 99 minutes

Induction coil weight: Approximately 8.5 kg

The entire machine's operation interface is a touch screen, which can display real-time parameters such as working voltage, oscillation current, real-time temperature, and heating time. It also has functions such as querying the heating curve and data recording.

It can display the heating temperature and set the target temperature value. Once the target temperature is reached, it will automatically stop and complete the demagnetization process. The equipment also has functions such as maintaining a constant temperature after reaching the temperature, and curve heating. It can also be connected to an upper computer to form an automatic control operating system.

Equipped with infrared probes: Remote infrared temperature measurement and real-time temperature display; The probe mounting frame is a magnetic base, allowing for free movement and adjustment of the angle.

The heating start control is mainly standardly controlled by the cabinet buttons. Additionally, there is also a remote button control option for quick addition. The overall heating control of the machine is achieved through a one-click intelligent operation. During the process of heating to the target temperature, there are two control methods available: time-based control and temperature measurement control that stops the machine when the target value is reached.
